The Titan series is a range of certified vault panels and doors, designed to offer protection against burglary. Engineered for high-security environments, these vault panels and doors provide reinforced protection while offering installation flexibility, ensuring the security of high-value assets in compliance with BIS standards. The Titan series delivers optimum security in models ranging from Class C to AAA.
Burglary
5 Models Ranging From Class C to AAA
Key Lock, Combination Lock or Electronic Lock
The Titan series is a range of certified vault panels and doors, designed to offer protection against burglary. Engineered for high-security environments, these vault panels and doors provide reinforced protection while offering installation flexibility, ensuring the security of high-value assets in compliance with BIS standards. The Titan series delivers optimum security in models ranging from Class C to AAA.

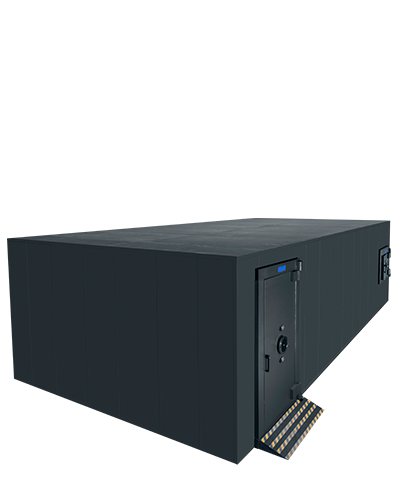

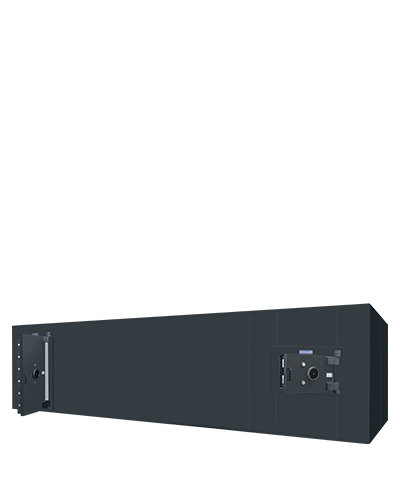

This vault solution features modular panels that are easily assembled using bolts, allowing for quick installation, disassembly, and expansion as needed. The innovative design supports installation in various environments — from new builds to existing structures — and can be tailored to fit any shape or size following a thorough site survey.
The Titan Modular Vault also offers a variety of certified lock options, including key locks, combination locks, and high-security electronic locks, providing customizable solutions for every security need.
All sizes have been certified in accordance with the IS-17541 standard for burglary resistance class C to AAA.

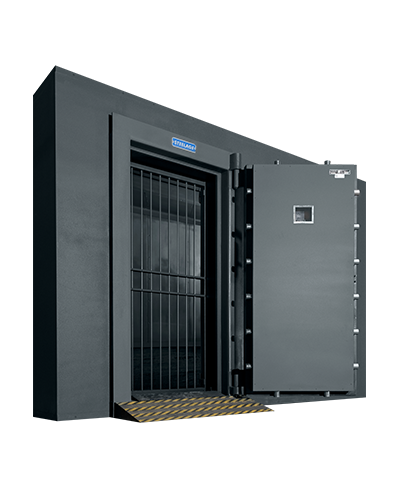

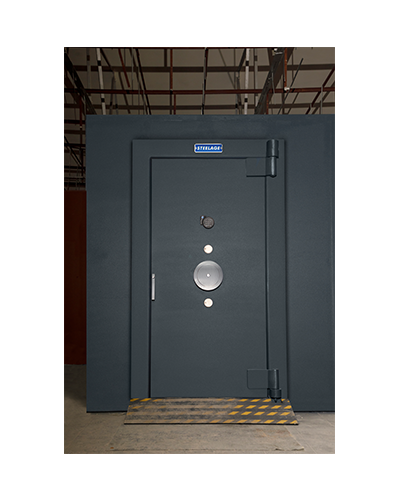

Titan vaults are constructed with modular solution for a quick assembly, disassembly and extension. The reduced wall thickness allows for a maximised use of available space. The strong room door and grille gate, accessible via a high-security lock, offer an extra layer of protection.
| Model | Thickness | Weight kg/m2 |
Panel standard height | Panel standard width | |
|---|---|---|---|---|---|
| Class C | 70 | 300 | 2440 | 830 | - |
| Class B | 70 | 350 | 2440 | 830 | |
| Class A | 100 | 750 | 2440 | 830 | |
| Class AA | On Demand | On Demand | On Demand | On Demand | - |
| Class AAA | On Demand | On Demand | On Demand | On Demand | - |
| Model | Thickness | Weight kg/m2 |
Panel standard height | Panel standard width | |
|---|---|---|---|---|---|
| Class C | 0.2 | 300 | 8 | 2.7 | - |
| Class B | 0.2 | 350 | 8 | 2.7 | |
| Class A | 0.3 | 750 | 8 | 2.7 | |
| Class AA | On Demand | On Demand | On Demand | On Demand | - |
| Class AAA | On Demand | On Demand | On Demand | On Demand | - |
Standard door is right hung. Gunnebo policy is one of constant improvement. We reserve the right to alter specifications without prior notice.
*Tolerance on weight +/- 10% & Tolerance on dimensions is +/- 5 mm *Conditions Apply
